Anatomy of the Cervical Spine:
Upper Limb Tension Test

The Upper Limb Tension Test (ULTT) is a clinical assessment used to distinguish nerve-related pain from pain arising in muscles, joints, or other soft tissues of the upper limb. Originally described by Elvey in 1980, the ULTT helps clinicians identify involvement of the cervical nerves, brachial plexus, and their connective tissues in conditions that cause neck, shoulder, or arm pain.

Functional Anatomy

The cervical spine contains seven vertebrae (C1–C7) that protect the spinal cord and support the head. Spinal nerves exiting from these vertebrae form the brachial plexus, which supplies the shoulder, arm, and hand. The test focuses on how tension in these nerves may reproduce or relieve symptoms of nerve compression or irritation.

The ULTT places specific mechanical stresses on the brachial plexus and associated cervical nerve roots, particularly C5 and C6, which are most sensitive to stretching. The test is performed through controlled positioning of the shoulder, elbow, wrist, and neck to evaluate whether pain arises from neuromeningeal structures or other tissues.

Biomechanics or Physiology

During the ULTT, sequential joint movements stretch the nerves and surrounding connective tissues of the upper limb. This process increases tension along the nerve pathway from the cervical spine to the hand. If a nerve is compressed or irritated, the patient may feel pain, tingling, or numbness that mimics their typical symptoms.

Adding cervical side flexion enhances the test’s diagnostic value. Symptoms that worsen with contralateral neck bending and ease with ipsilateral wrist flexion suggest neural tissue involvement. These movements transmit tension from the peripheral nerves to the coverings of the cervical nerve roots and the spinal cord dura.

Common Variants and Anomalies

Different variations of the ULTT are used to isolate specific nerves:

• Median Nerve ULTT – often used when carpal tunnel syndrome or anterior arm pain is suspected.

• Ulnar Nerve ULTT – used for symptoms involving the ring and little fingers, as in cubital tunnel syndrome.

• Radial Nerve ULTT – targets the back of the arm and forearm, commonly used for lateral arm pain or wrist extensor weakness.

Each variation changes the sequence and direction of limb positioning to selectively tension the target nerve.

How ULTTs Are Conducted

During a ULTT, a clinician will carefully move your arm into various positions:

Shoulder Abduction: Lifting the arm sideways.

Elbow Extension: Straightening the elbow.

Wrist and Finger Extension: Pulling the wrist and fingers back.

Neck Movements: Bending or rotating the neck to increase nerve tension.

These positions put stress on specific nerves. If a nerve is compressed or irritated, these movements will likely reproduce the symptoms, such as tingling, numbness, or pain.

Clinical Relevance

The ULTT is a simple, non-invasive diagnostic tool for identifying nerve tension or irritation originating from the neck. It is particularly useful in differentiating cervical radiculopathy from shoulder or muscular disorders. A positive test reproduces the patient’s characteristic pain or numbness, confirming involvement of the neural structures.

The test also provides insight into mechanical sensitivity along the nerve pathway. Because the C5 and C6 nerve roots are the most vulnerable to traction, patients with nerve compression or inflammation at these levels often test positive.

Imaging Overview

While the ULTT is a clinical test that does not require imaging, MRI or CT scans of the cervical spine may be ordered when the test suggests nerve root irritation or compression. MRI can reveal disc herniation, foraminal narrowing, or other structural causes of nerve tension. Ultrasound imaging may also be used to assess peripheral nerve mobility in the arm.

Associated Conditions

Conditions commonly linked to a positive ULTT include:

• Cervical radiculopathy caused by herniated discs or foraminal stenosis.

• Brachial plexus injury following trauma or repetitive strain.

• Peripheral nerve entrapment such as carpal or cubital tunnel syndromes.

• Postural or repetitive stress disorders causing neural tension.

It is also helpful in assessing neuropathic pain conditions, where nerve tissue becomes hypersensitive.

Surgical or Diagnostic Applications

The ULTT assists clinicians in planning both surgical and non-surgical treatments. In non-surgical care, the test identifies the level and extent of nerve involvement, guiding targeted physical therapy and ergonomic correction. For patients undergoing surgery, it helps determine the source of symptoms, ensuring that surgical decompression targets the correct nerve level.

Postoperatively, a modified ULTT may be used to assess neural mobility during rehabilitation.

Prevention and Maintenance

Maintaining healthy posture and flexibility in the cervical spine and upper limbs can help prevent nerve tension syndromes. Ergonomic work setups, avoiding prolonged neck flexion, and regular stretching exercises of the neck, shoulder, and forearm can reduce strain on the cervical nerves.

Early recognition of symptoms like tingling or numbness allows for prompt evaluation before permanent nerve changes occur.

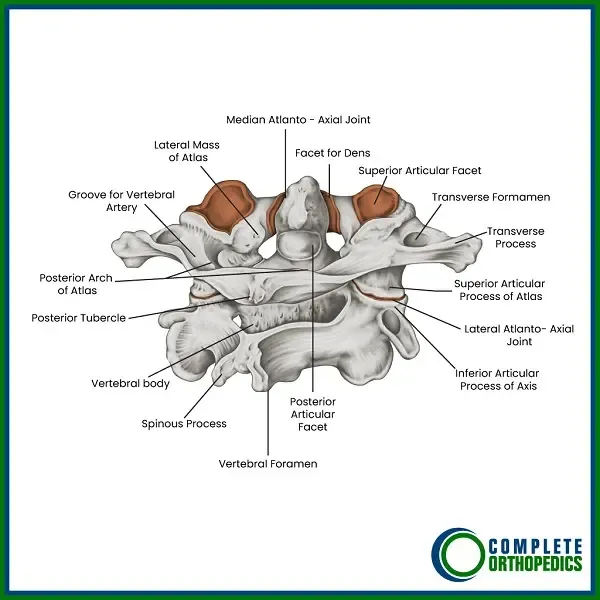

The Atlas (Top Bone in the Cervical Spine) Illustrated

Research Spotlight

A recent study explored the use of deep learning models to classify and analyze Upper Limb Tension Test (ULTT) movements, which are key diagnostic maneuvers for cervical and brachial plexus nerve disorders. Researchers processed over 103,000 image frames from 520 ULTT videos covering four test types—median, ulnar, and radial nerve biases—and applied transfer learning using eight pre-trained convolutional neural networks (CNNs).

The Xception, InceptionV3, and DenseNet201 models achieved the highest accuracy (over 99%) and lowest validation loss, outperforming traditional models such as VGG16 and ResNet101. The study demonstrated that CNN-based models can effectively recognize and classify subtle joint and nerve tension movements, potentially improving training accuracy in rehabilitation and manual therapy.

The authors concluded that integrating AI into clinical education could enhance precision in diagnosing neuromechanical dysfunctions and support remote physiotherapy instruction, particularly where face-to-face evaluation is limited. (Study of deep learning–based ULTT motion classification – See PubMed.)

Summary and Key Takeaways

The Upper Limb Tension Test is a valuable clinical procedure used to evaluate nerve tension and identify sources of pain in the neck, shoulder, and upper extremity. It is highly sensitive for detecting cervical nerve and brachial plexus irritation.

Because of the complex anatomy of the cervical region, pain reproduced during the ULTT may arise from both neural and connective tissue structures. Understanding this relationship allows clinicians to interpret the test more accurately and design appropriate treatment strategies.

Proper technique, patient relaxation, and anatomical knowledge are essential for reliable ULTT results and for guiding further diagnostic imaging or therapy.
